LP3568 Built in 40V MOS synchronous rectification controller chip
隔離型的同步整流控制應用 兼容 DCM 和 CCM 工作模式
Model:
Product Description:

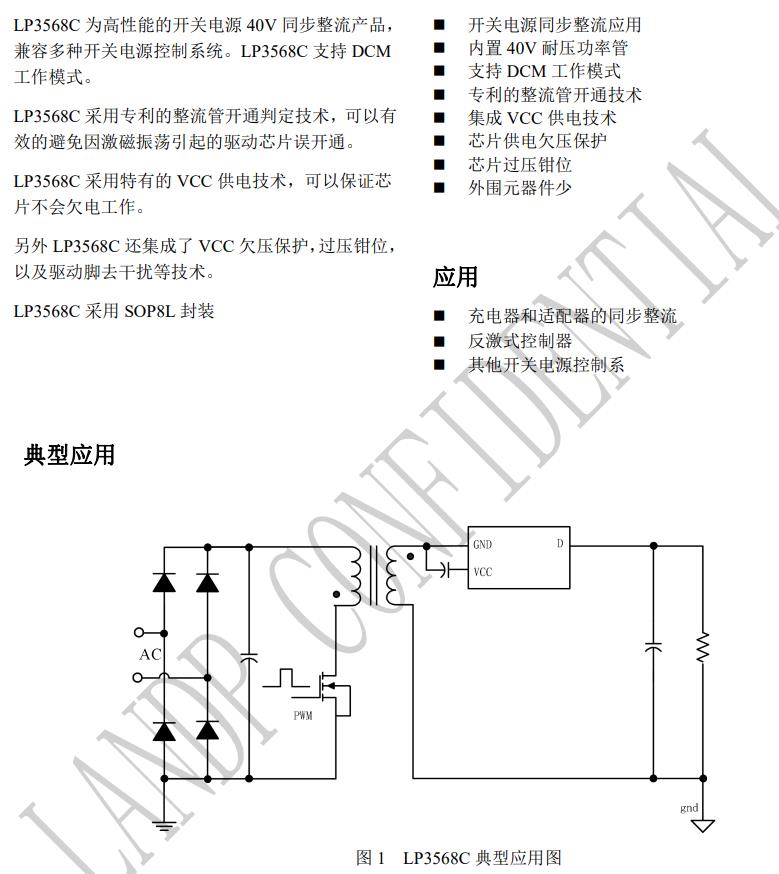

LP3568C 為高性能的開關電源 40V 同步整流產品， 兼容多種開關電源控制系統。LP3568C 支持 DCM 工作模式。
LP3568C 采用專利的整流管開通判定技術，可以有 效的避免因激磁振蕩引起的驅動芯片誤開通。
LP3568C 采用特有的 VCC 供電技術，可以保證芯 片不會欠電工作。 另外 LP3568C 還集成了 VCC 欠壓保護，過壓鉗位， 以及驅動腳去干擾等技術。
LP3568C 采用 SOP8L 封裝
特點 ? 開關電源同步整流應用 ? 內置 40V 耐壓功率管 ? 支持 DCM 工作模式 ? 專利的整流管開通技術
? 集成 VCC 供電技術 ? 芯片供電欠壓保護 ? 芯片過壓鉗位 ? 外圍元器件少
應用 ? 充電器和適配器的同步整流 ? 反激式控制器 ? 其他開關電源控制系
| Part No. | MOS BV (V) | Rdson (mΩ) | Vcc Self Sup. | Vcc (V) | Ton_min (us) | Dynamic | Vcc_on (V) | Voff (mV) | Vcc_uvlo (V) | Vd PIN | Package | Application |
| LP3568AG | 40 | 20 | Yes | 5.1 | 1.2 | No | 3.6 | -5 | 2.3 | No | SOP8L | 5V/2A |
| LP3568ADL | 40 | 20 | Yes | 5.1 | 1.2 | Yes | 3.6 | -5 | 2.3 | Yes | SOP7L | 5V/2A |
| LP3568AS | 40 | 20 | Yes | 5.1 | 1.2 | Yes | 3.6 | -5 | 2.3 | Yes | SOP7L | 5V/2.4A |
| LP3568BG | 40 | 13 | Yes | 5.1 | 1.2 | No | 3.6 | -5 | 2.3 | No | SOP8L | 5V/2.4A |
| LP3568C | 40 | 8 | Yes | 5.1 | 1.2 | No | 3.6 | -5 | 2.3 | No | SOP8L | 5V/3.4A |
| LP25R060S | 60 | 25 | Yes | 5.1 | 1.2 | Yes | 3.6 | -5 | 2.3 | Yes | SOP7L | 18W |
| LP25R060SC | 60 | 30 | Yes | 5.1 | 1.2 | Yes | 3.6 | -5 | 2.4 | Yes | SOP7L | 18W |
| LP15R060S | 60 | 12 | Yes | 5.1 | 1.2 | No | 3.6 | -5 | 2.3 | Yes | SOP7L | PD20W |
| LP15R060SC | 60 | 14 | Yes | 5.1 | 1.2 | No | 3.6 | -5 | 2.4 | Yes | SOP7L | PD20W |
| LP15R060SD | 60 | 10 | Yes | 5.1 | 1.2 | No | 3.6 | -5 | 2.3 | Yes | SOP7L | PD20W |
| LP10R060SD | 60 | 10 | Yes | 5.1 | 1.2 | Yes | 3.6 | -5 | 2.3 | Yes | SOP7L | 24W |
| LP10R060AB | 60 | 10 | Yes | 5.1 | 1.2 | No | 3.6 | -5 | 2.3 | Yes | ASOP6 | 12V/3A |
| LP3588AS | 80 | 35 | Yes | 5.1 | 1.2 | No | 3.6 | -5 | 2.3 | No | SOP8L | 12V/1.5A |
| LP3588BS | 80 | 17 | Yes | 6.1 | 1.6 | No | 4.4 | -5 | 4 | No | SOP8L | 12V/2A |
| LP3588BSB | 85 | 17 | Yes | 6.1 | 1.6 | No | 4.4 | -5 | 4 | Yes | SOP8L | 12V/2A |
| LP3588ASD | 80 | 16 | Yes | 5 | 1.2 | Yes | 3.5 | -5 | 2.1 | Yes | SOP8L | 12V/2A |
| LP3588CS | 80 | 12 | Yes | 6.1 | 1.6 | No | 4.4 | -5 | 4 | No | SOP8L | 12V/3A |
| LP3588CSF | 85 | 12 | Yes | 6.1 | 1.6 | No | 4.4 | -5 | 4 | Yes | SOP8L | 12V/3A |
| LP20R061S | 100 | 17 | Yes | 6.1 | 1.6 | No | 4.4 | -5 | 4 | No | SOP8L | 12V/2A |
| LP15R100OS | 100 | 12 | Yes | 6.1 | 1.6 | No | 4.4 | -5 | 4 | No | SOP8L | 12V/2.5A |
| LP20R100TA | 100 | 17 | Yes | 6.1 | 1.2 | No | 4.4 | -5 | 4 | No | TO252 | 36W |
| LP15R100TA | 100 | 12 | Yes | 6.1 | 1.2 | No | 4.4 | -5 | 4 | No | TO252 | 40W |
| LP15R045FN | 45 | 15 | Cap Inside | 5.1 | 0.5 | No | 3.6 | -5 | 2.4 | No | TO220F | 5V/5A |
| LP20R100FN | 100 | 17 | Cap Inside | 6.1 | 1.6 | No | 4.5 | -5 | 4 | No | TO220F | 12V/3A |
| LP215R100FN | 100 | 12 | Cap Inside | 6.1 | 1.6 | No | 4.5 | -5 | 4 | No | TO220F | 12V/5A |
| LP15R120FN | 120 | 15 | Cap Inside | 6.1 | 1.6 | No | 4.5 | -5 | 4 | No | TO220F | 12V/4A |
| LP10R100FN | 100 | 8 | Cap Inside | 6.1 | 1.6 | No | 4.6 | -5 | 4 | No | TO220F | 12V/5A |
| LP10R100N | 100 | 8 | Yes | 7.1 | 0.35 | No | 4.4 | 20 | 4 | Yes | PDFN5*6 | 12V/3A |
| LP10R100HS | 100 | 8 | Yes | 6.2 | 0.35 | No | 4.4 | 20 | 4 | Yes | SOP8L | 12V/3A |
| LP15R120HS | 120 | 15 | Yes | 6.1 | 1.6 | No | 4.4 | -5 | 4 | Yes | SOP8L | 印現12V/2A |
